KIA Niro: Rear Center Seat Belt Retractor

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Body (Interior And Exterior) / Rear Seat / Rear Center Seat Belt Retractor

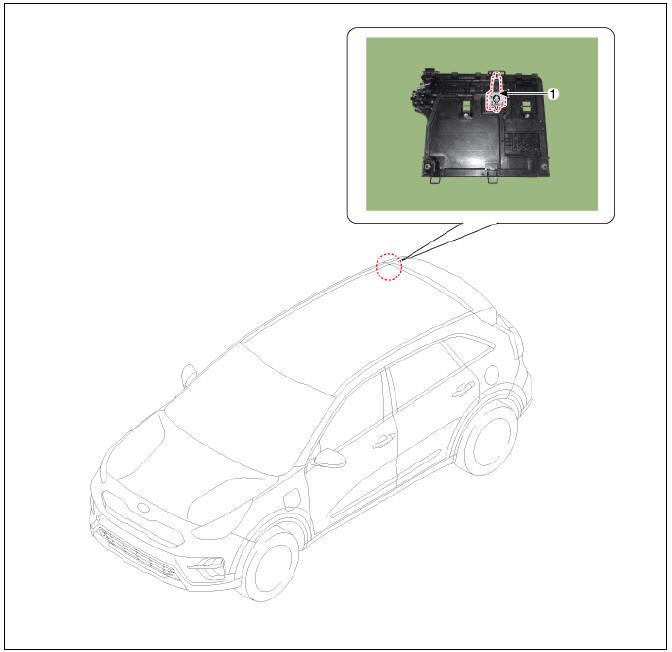

  1. Rear center seat belt retractor

Replacement

Warning

When installing the belt, be careful not to damage the retractor.

  1. Remove the rear seat back dust cover.

    (Refer to Rear Seat - "Rear Seat Back Cover")

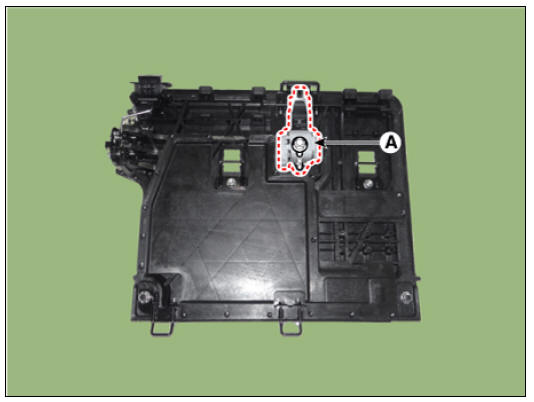

  2. Remove the rear center seat belt (A) after loosening the retractor mounting bolt.

  1. Install in the reverse order of removal.

Warning

  • Make sure the connector is plugged in properly.
  • Replace any damaged clips (or pin-type retainers).

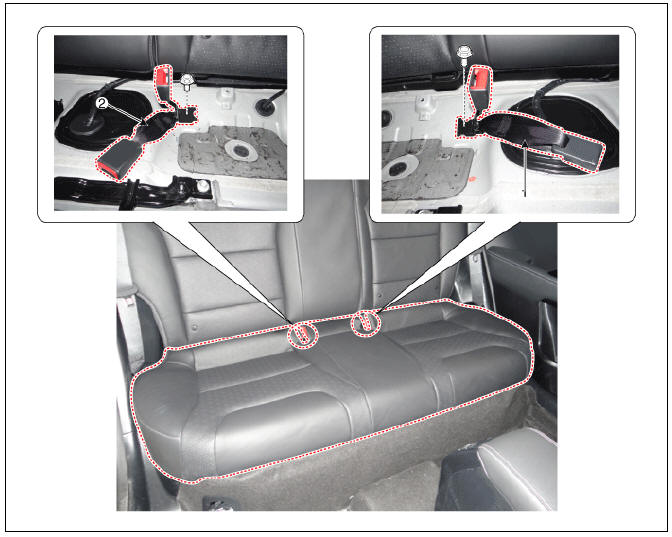

Rear seat belt buckle

  1. Rear seat belt buckle (RH)
  2. Rear seat belt buckle (LH)

Replacement

Warning

When installing the belt, be careful not to damage the retractor.

  1. Remove the rear seat cushion assembly.

    (Refer to Rear Seat - "Rear Seat Assembly")

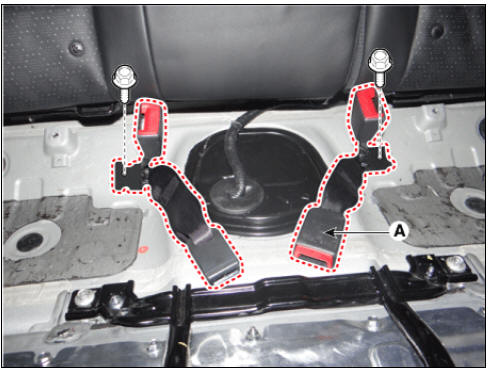

  2. Remove the rear seat belt buckle (A) after loosening the mounting bolt.

Tightening torque : 39.2 - 53.9 N*m (4.0 - 5.5 kgf*m, 28.9 - 39.8 lb*ft)

  1. Install in the reverse order of removal.
