KIA Niro: Roof Trim

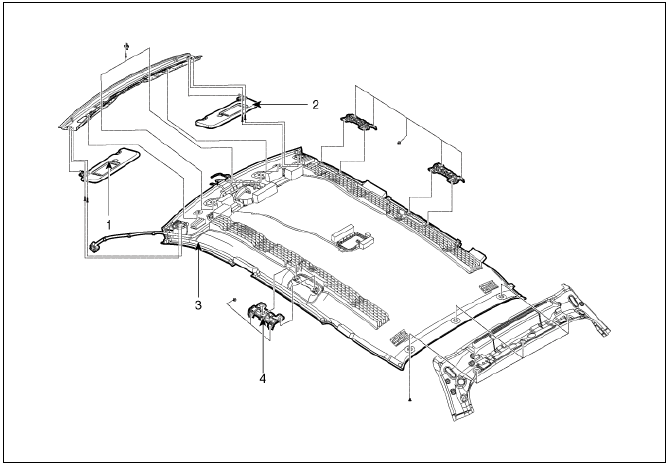

Components (1)
General Type
- Sun visor (LH)
- Sun visor (RH)
- Roof trim
- Assist handle bracket

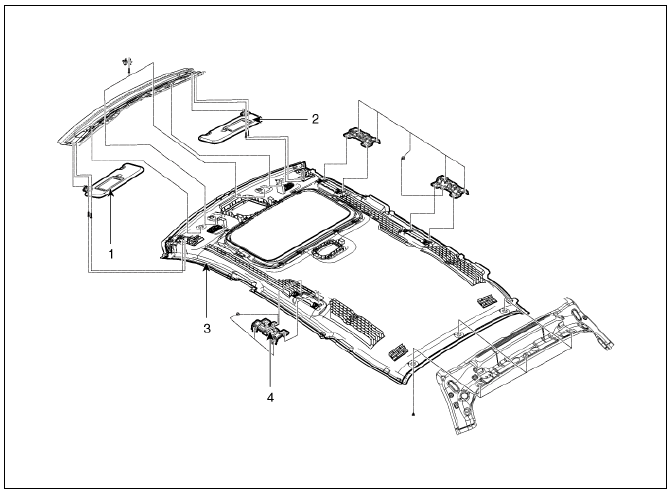

Components (2)
Sunroof Type
- Sun visor (LH)
- Sun visor (RH)
- Roof trim
- Assist handle bracket
