Rear Console Cover Components and components location

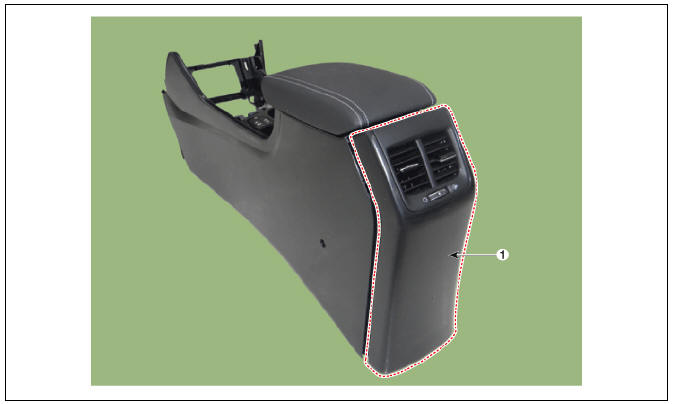

- Rear console cover
Rear Console Cover Repair procedures
Replacement
- Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")

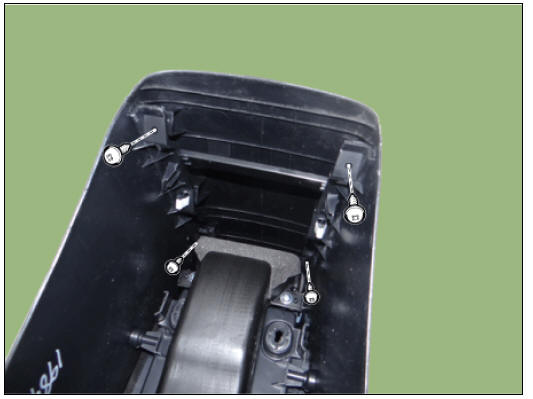

- Loosen the screws.

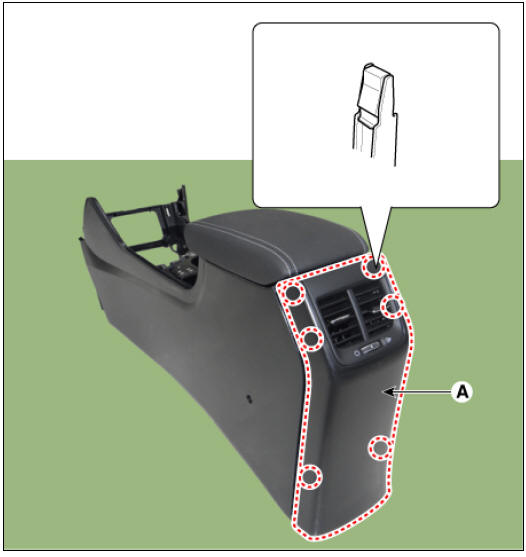

- Remove the rear console cover (A) by using a remover.
- Install in the reverse order of removal.
Warning
- Make sure the connector is connected properly.
- Replace any damaged clips.
Console Armrest
Console Armrest Components and components location

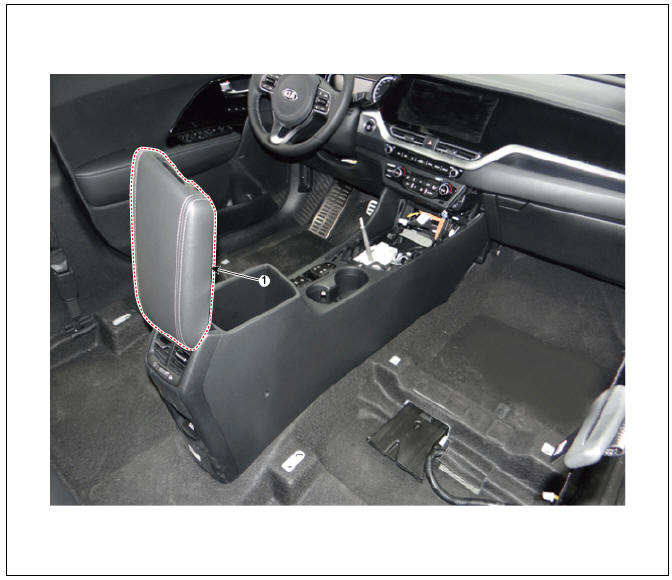

- Console armrest
Console Armrest Repair procedures
Replacement
- Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
- Remove the rear console cover.
(Refer to Floor Console - "Rear Console Cover")

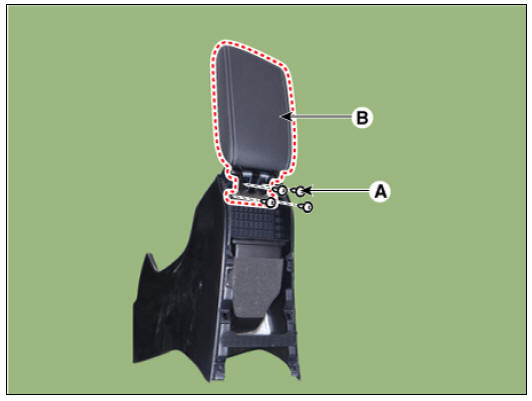

- Loosen the mounting screws (A) and remove the console armrest (B).
- Install in the reverse order of removal.
Warning
Replace any damaged clips.
