KIA Niro: Reverse Parking Distance Warning operation

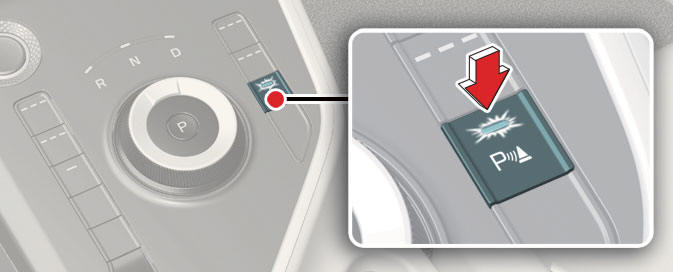

Parking Safety button (if equipped)

Parking Safety button (if equipped)

Press the Parking Safety ( ) button to turn on or off Reverse Parking Distance Warning.

  • When Reverse Parking Distance Warning is off (button indicator light off), if you shift the gear to R (Reverse), Reverse Parking Distance Warning will automatically turn on.
  • If you shift the gear to R (Reverse), Reverse Parking Distance Warning will not turn off even if you press the Parking Safety ( ) button for your safety.

Reverse Parking Distance Warning

Reverse Parking Distance Warning will operate under the following conditions.

  • Shift the gear to R (Reverse).
  • The vehicle's speed is below 10 km/h (6 mph).

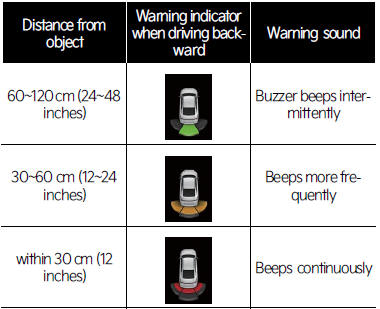

Warning indication and warning sound

Warning indication and warning sound

  • The corresponding indicator will appear on the cluster or infotainment system whenever each ultrasonic sensor detects a person, animal or object in its sensing range. Also an audible warning will sound.
  • When more than two objects are detected at the same time, the closest one will be warned with an audible warning.
  • Distance from object may be detected differently when obstacles are not located in front of the sensor.
  • The shape of the indicator in the illustration may differ from the actual vehicle.


     Reverse Parking Distance Warning malfunction and precautions

    Reverse Parking Distance Warning malfunction After starting the vehicle, a beep will sound once when the gear is shifted to R (Reverse) to indicate Reverse Parking Distance Warning is operating normally. However, if one or more of the followin
