KIA Niro: Smart Cruise Control (SCC)
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Front Radar System / Smart Cruise Control (SCC)

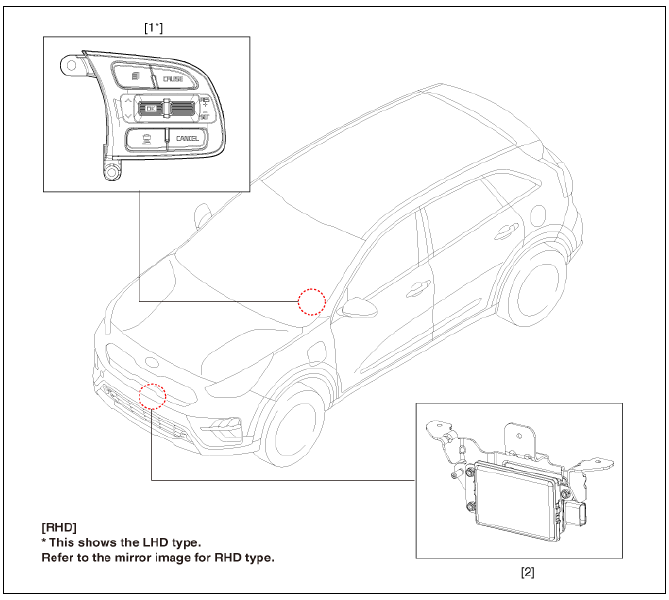

- Smart Cruise Control (SCC) switch
- Front radar unit
Description
System Function
- Forward Collision-avoidance Assist (FCA) : Detects the risk factors on the road and warn the driver and activate the emergency brake to prevent collision or reduce collision speed.
- Smart Cruise Control (SCC) : The smart cruise control system allows a driver to program the vehicle to control the speed and following distance. The SCC system detects the vehicle ahead without depressing the brake or accelerator pedal.
System Description
Forward Collision-avoidance Assist (FCA)

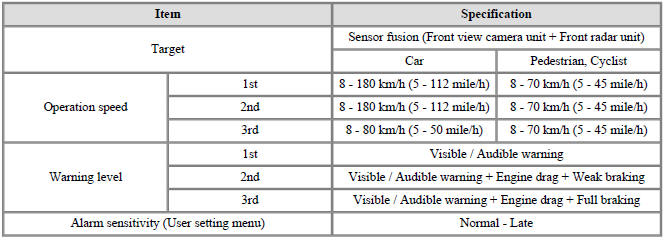

- Operation specification
- System components

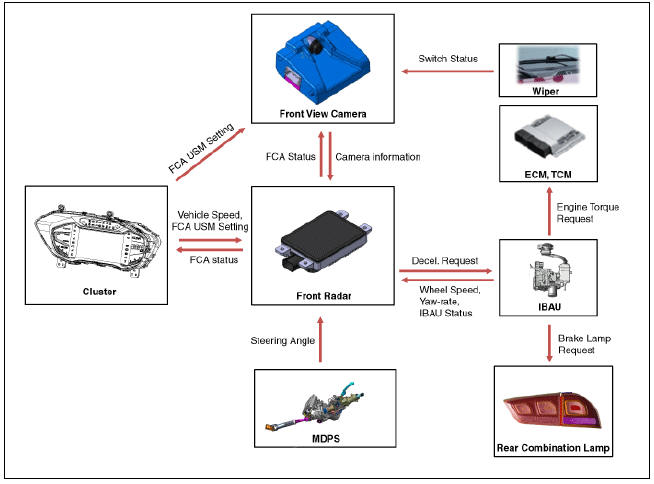

- System block diagram

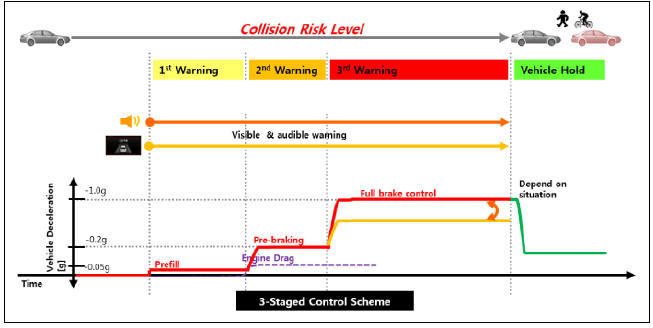

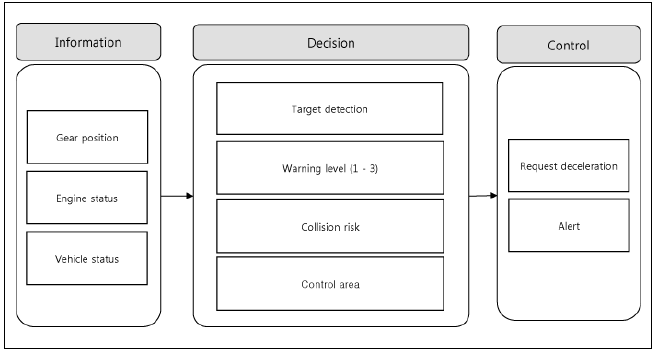

- System operation
Smart Cruise Control (SCC)
- Operation specification
- System components

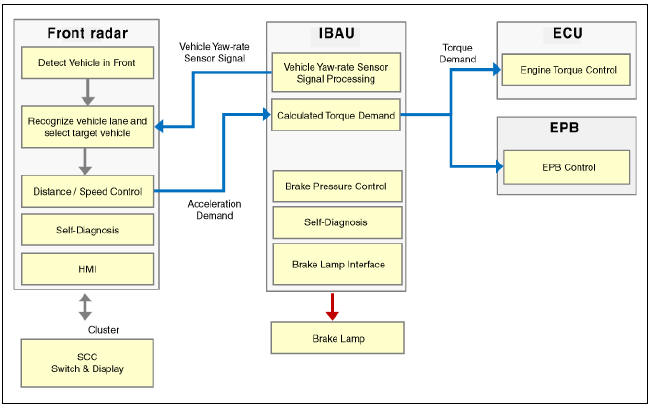

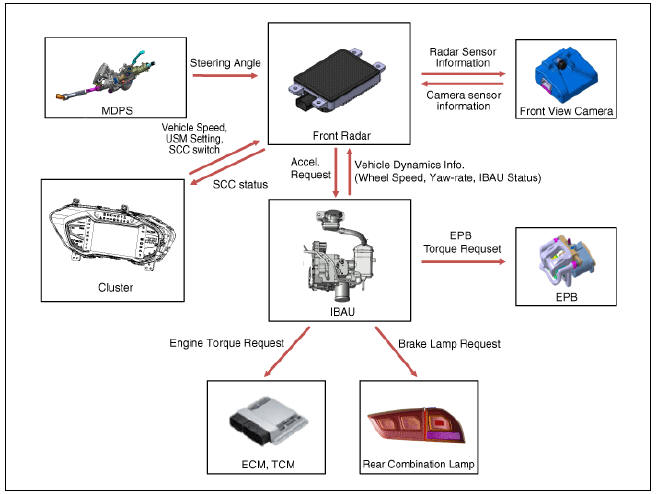

- System block diagram
Limitation of the System
This system monitors the driving situations through the radar and the camera. Thus, for a situation out of the sensing range, the system may not normally operate.
The System may be limited when :
- The radar sensor or camera is blocked with a foreign object or debris.
- The camera lens is contaminated due to tinted filmed or coated windshield, damaged glass, or stuck of foreign matter (sticker, bug, etc.) on the glass.
- Inclement weather such as heavy rain or snow obscures the field of view of the radar sensor or camera.
- The target in front is too small to be detected
- The vehicle in front is an oversize vehicle or trailer that is too big to be detected by the camera recognition system (for example a tractor trailer, etc.).
- The camera's field of view is not well illuminated (either too dark or too much reflection or too much backlight that obscures the field of view)
- The vehicle in front does not have their rear lights ON or their rear lights are located in an unsual location (modified).
- The windshield glass is fogged up and the clear view of the road has been obstructed.
- The camera or radar is damaged.
Troubleshooting
When a alignment failed DTC occurs, follow the troubleshooting flowchart below.

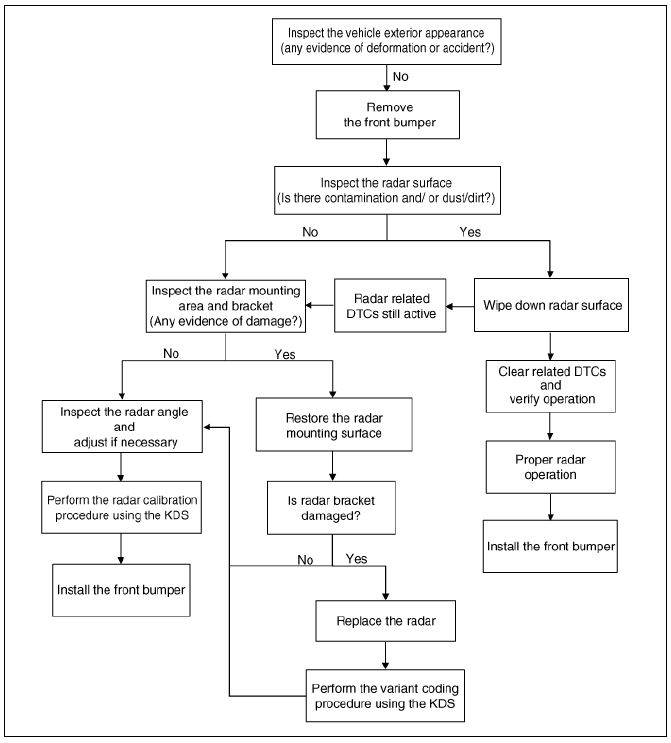

If there is no evidence of deformation or accident

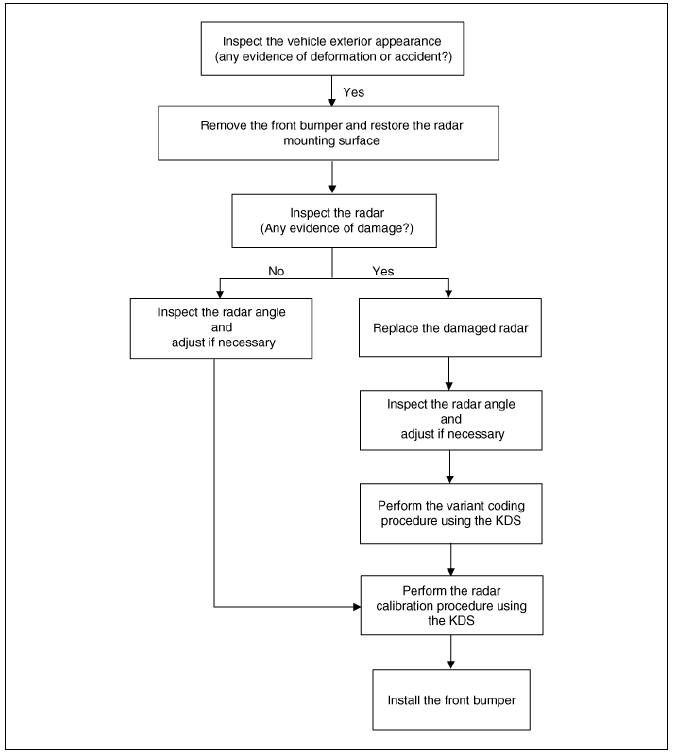

If there is any evidence of deformation or accident
