KIA Niro: Rear Corner Radar System
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System

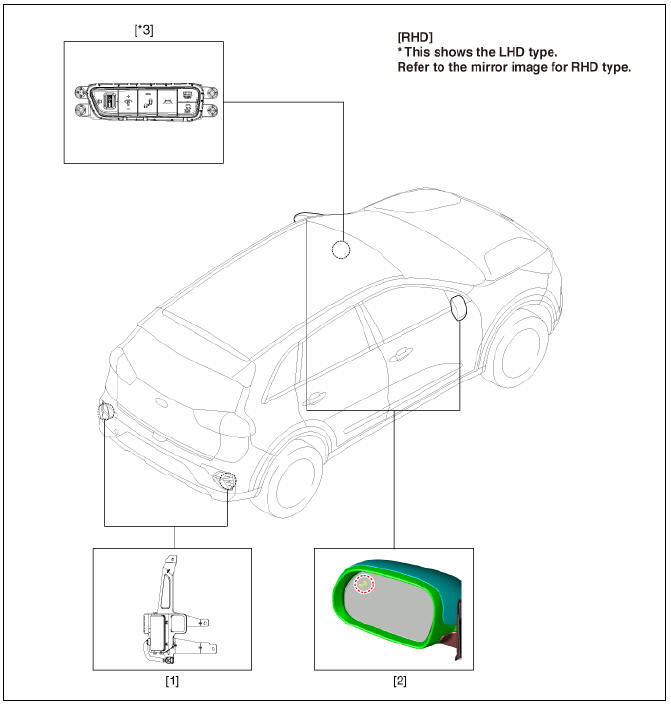

- Rear corner radar
- BCW & RCCW Indicator
- Blind-Spot Collision Warning (BCW) ON/OFF switch
Description

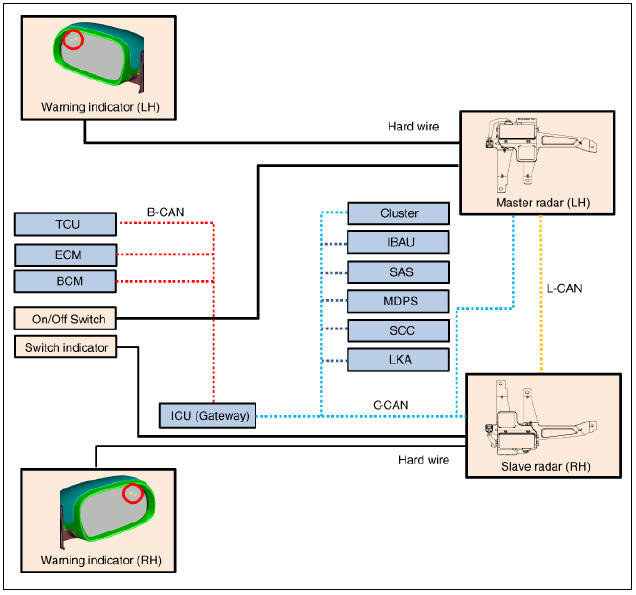

System Interface
System Function
- Blind-Spot Collision Warning (BCW) Sends an audible warning and signal on the mirror when sensing a vehicle in the blind spot area or when the vehicle is approaching at a high speed.
- Rear Cross-traffic Collision Warning (RCCW) Warns the driver when it senses a vehicle approaching from the rear outer range while vehicle is in reverse (R) position.

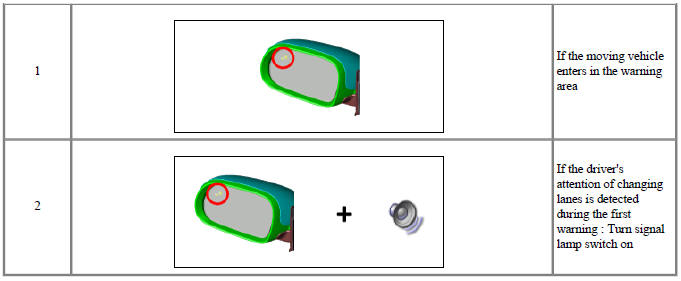

Alarm
Blind-Spot Collision Warning (BCW)
If the moving vehicle
enters in the warning
area
If the driver's
attention of changing
lanes is detected
during the first
warning : Turn signal
lamp switch on
Rear Cross-traffic Collision Warning (RCCW)
If the moving vehicle
enters in the warning
area

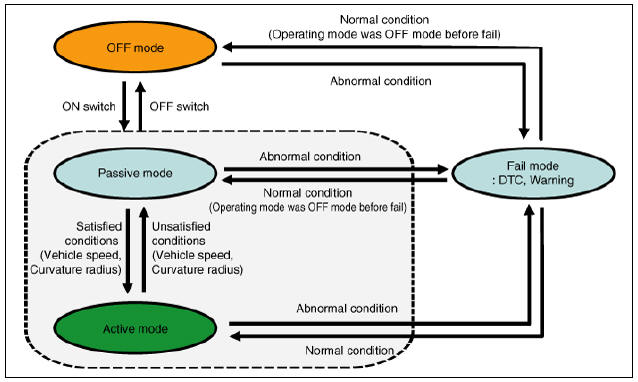

System Operating Mode

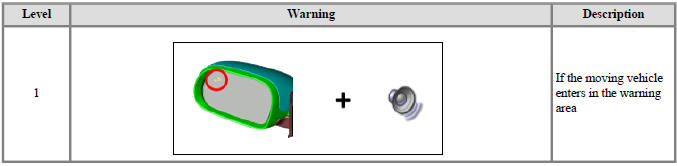

Warning Condition
