KIA Niro: Blind-Spot Collision Warning (BCW)
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Blind-Spot Collision Warning (BCW)
- BCW activation condition
(1) BCW on/off switch : On (indicated by the switch LED) (2) Vehicle Speed : 30 - 255 km/h (20 - 158 mph) (3) Relative vehicle speed : -10 to 255 km/h (-6 to 158 mph) (Negative value refers to the distance of the vehicle ahead.)
- Warning zone
A to B : Blind spot zone
B to C : Closing vehicle zone

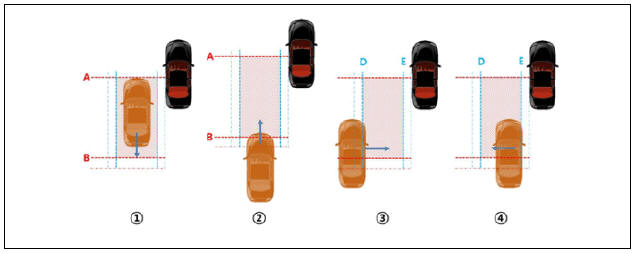

(1) Conditions for blind spot zone warning ON
- The entire body of the target vehicle is located behind the line A.
- Any part of the target vehicle passes the line B.
- Any part of the target vehicle that passes line D and enters.
- The entire part of the target vehicle passes the line E.

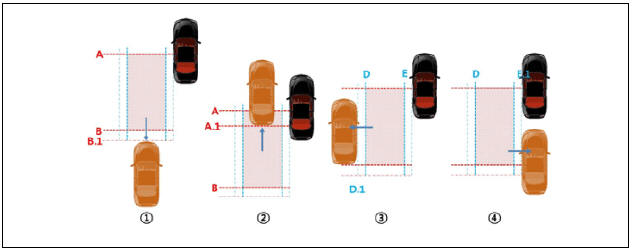

(2) Conditions for blind spot zone warning OFF
- The entire body of the target vehicle is move behind the line B.1.
- The entire body of the target vehicle passes the line A.1.
- The entire body of the target vehicle passes the line D.1.
- The entire body of the target vehicle passes the line E.1.

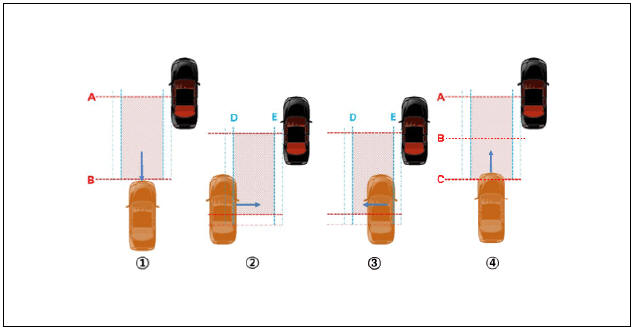

(3) Conditions for closing vehicle zone warning ON
- The entire body of the target vehicle is located before the line B.
- Any part of the target vehicle passes the line D.
- The entire body of the target vehicle passes the line E.
- In the all above condition, TTC (Time to Collision) is less than 4.5(3.8) sec.

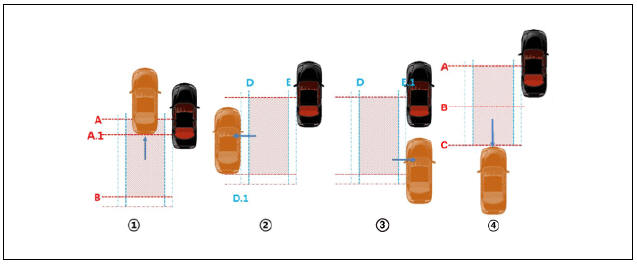

(4) Conditions for closing vehicle zone warning OFF
- The entire body of the target vehicle passes the line A.1.
- The entire body of the target vehicle passes the line D.1.
- The entire body of the target vehicle passes the line E.1.
- In the all above condition, TTC(Time to Collision) is more than 4.5(3.8) sec.
Warning
"Time To Collision (TTC): Time calculated using the relative distance/speed which is the time until the possible collision.
(TTC is subject to change depending on the relative speed of the approaching vehicle)."
