KIA Niro: Using the Tire Mobility Kit

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / What to do in an emergency / If you have a flat tire (with Tire Mobility Kit) / Using the Tire Mobility Kit

Operation

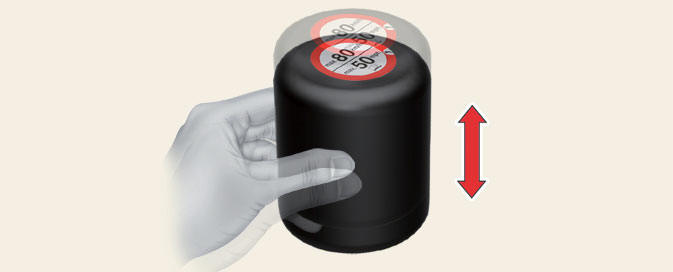

  1. Shake the sealant bottle.

Using the Tire Mobility Kit

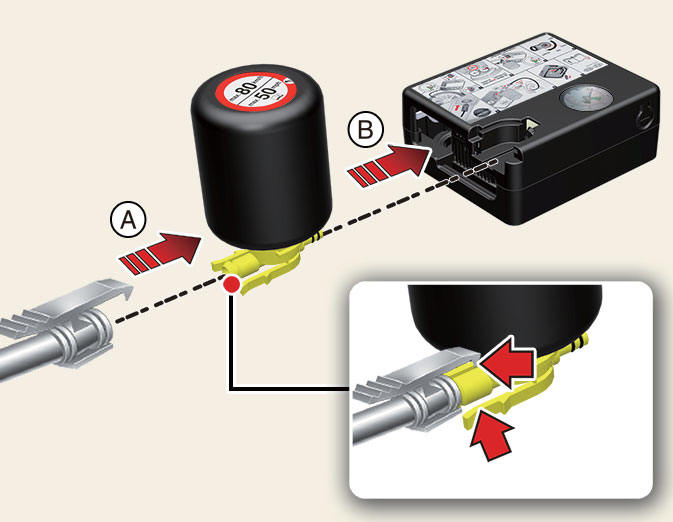

  1. Connect the filling hose onto the connector of the sealant bottle. (A) Remove the sealant bottle cap and sealant bottle holder cap and connect the bottle onto the sealant bottle holder. (B)

Using the Tire Mobility Kit

  1. Make sure the compressor valve on the filling hose is locked.

Using the Tire Mobility Kit

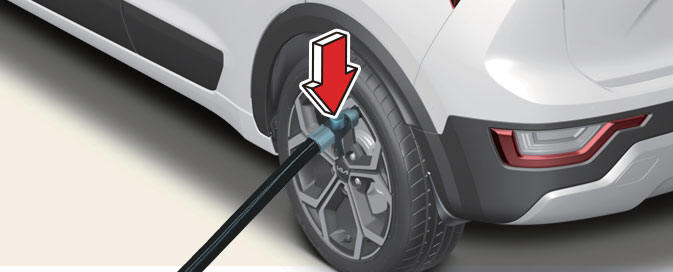

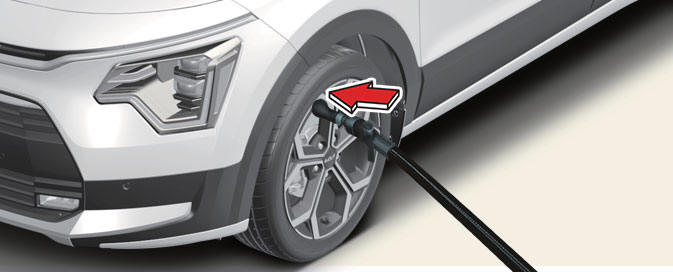

  1. Unscrew the valve cap and screw the filling hose onto the tire valve.

Using the Tire Mobility Kit

  1. Make sure the compressor is turned off.
  2. Connect the power outlet connector.

Using the Tire Mobility Kit

  1. Start the vehicle.
  2. Turn the compressor on and let it run for approximately 5~7 minutes to fill the sealant up to the proper pressure.
  3. Turn the compressor off.
  4. Detach the filling hose from the tire valve.

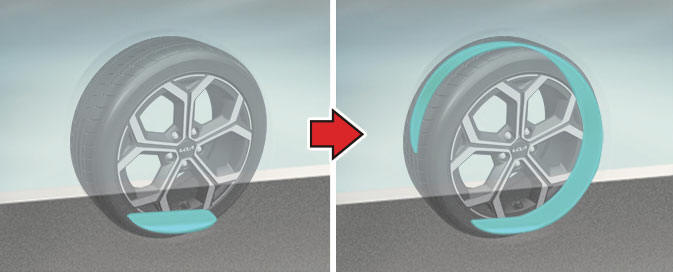

Distributing the sealant

Distributing the sealant

Operation

  • Immediately drive approximately 7~10 km (4~6 miles, or approximately 10 minutes) to distribute the tire sealant evenly.

WARNING

  • Do not leave your vehicle running in a poorly ventilated area for extended periods of time. Carbon monoxide poisoning and suffocation can occur.
  • If the tire pressure is below 26 psi(180 kPa), do not drive the vehicle. The tire may cause accident.

CAUTION

  • Securely install the sealant filling hose to the valve. If not, sealant may flow backward, possibly clogging the filling hose.
  • Do not exceed a speed of 80 km/h (50 mph). If possible, do not fall below a speed of 20 km/h (12 mph). While driving, if you experience any unusual vibration, ride disturbance or noise, reduce your speed and drive with caution until you can safely pull off of the side of the road. Call for road side service or towing. When you use the Tire Mobility Kit, the wheel may be stained by sealant. Therefore, remove the wheel stained by sealant and have the vehicle inspected at a professional workshop. Kia recommends visiting an authorized Kia dealer/service partner.
