KIA Niro: Front Suspension System

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Suspension System / Front Suspension System

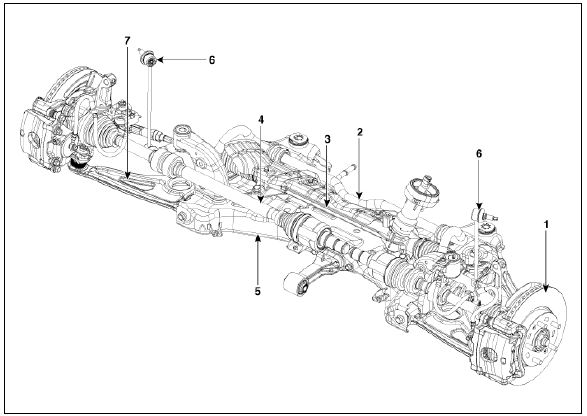

Front axle
Stabilizer bar
Gear box
Drive shaft
Subframe
Stabilizer link
Front lower arm

Front Strut Assembly Components and components location

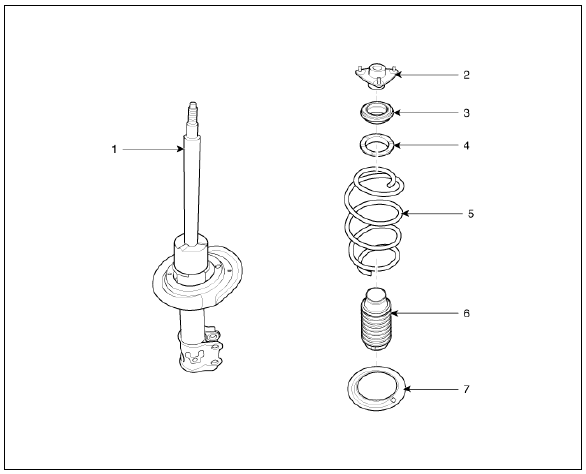

Strut assembly
Insulator
Bearing
Spring upper pad
Spring
Dust cover
Spring lower pad

Front Strut Assembly Repair procedures

Removal Remove the wheel and tire. Tightening torque: 107.9 - 127.5 N*m (11.0 - 13.0 kgf*m, 79.6 - 94.0 lb*ft) Warning Be careful not to damage the wheel nuts when removing the wheel and tire. Remove the stabilizer link nut. Ti

Front Lower Arm Repair procedures

Front Lower Arm Components and components location Components Ball joint assembly Front lower arm assembly Front Lower Arm Repair procedures Removal Remove the wheel and tire. Tightening torque: 107.9 - 127.5 N*m (11.0 - 13.0 k

Front Stabilizer Bar

Front Stabilizer Bar Components and components location Stabilizer bar Stabilizer link Front Stabilizer Bar Repair procedures Removal Disconnect the battery negative cable. Remove the universal bolt (A). Tightening torque : 32
