KIA Niro: Hybrid Power Control Unit (HPCU) connector and high voltage cable

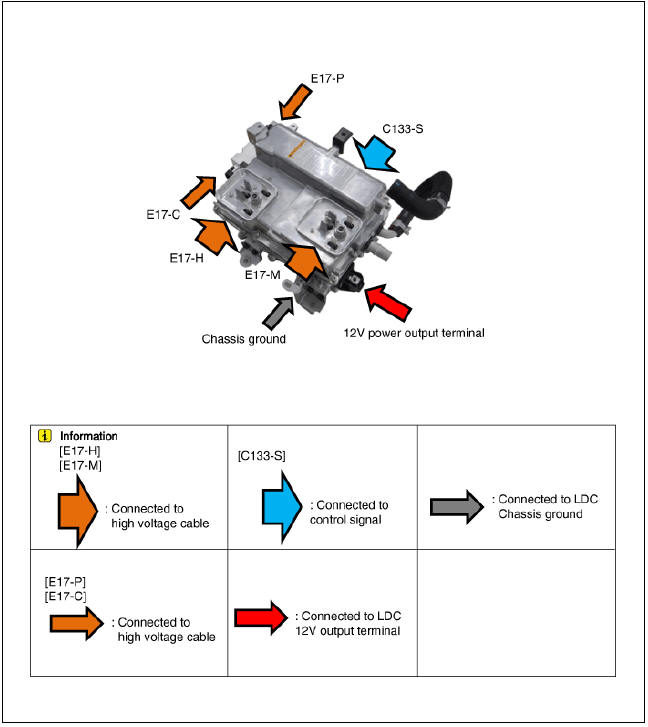

Hybrid Power Control Unit (HPCU) terminal And Input/Output signal

Hybrid Power Control Unit (HPCU) terminal And Input/Output signal

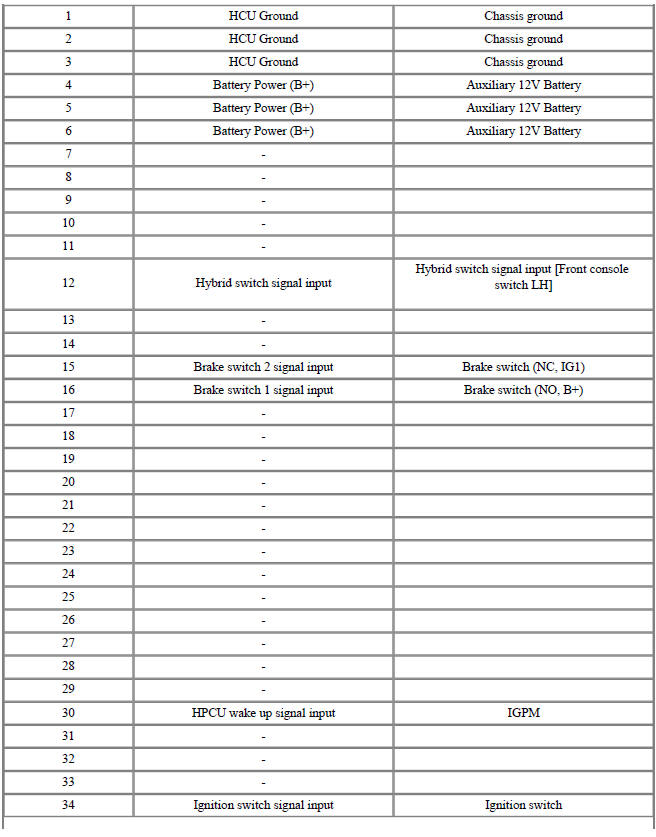

HPCU Terminal Function

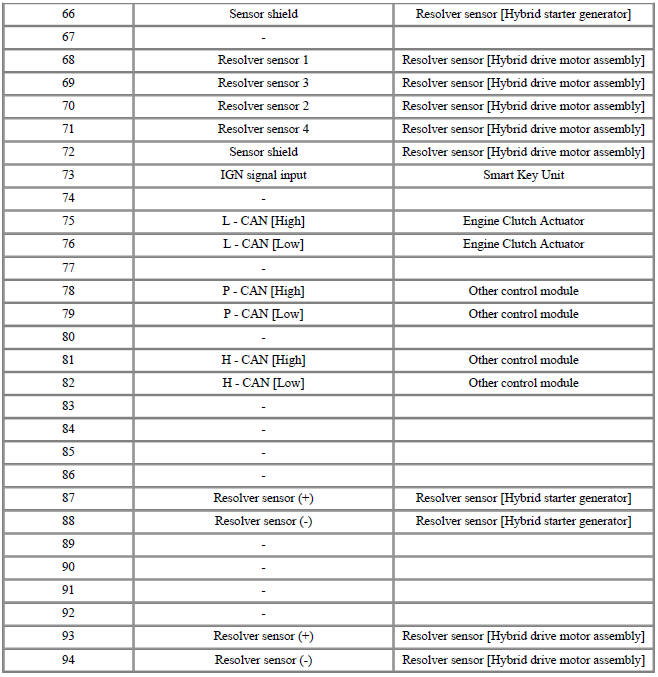

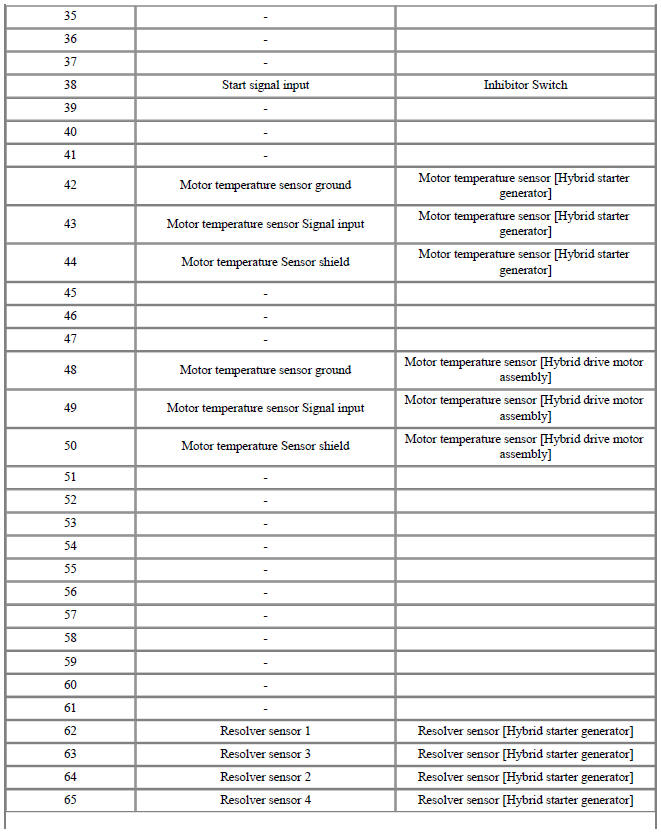

HPCU Terminal Function

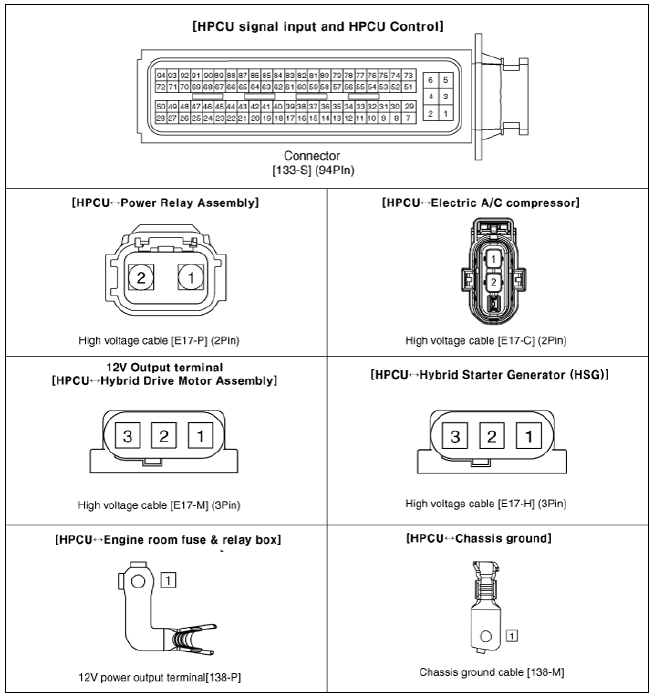

Connector (C133-S) (94Pin) : HPCU signal input and control

High Voltage Cable (C133-P) (2 Pin) : HPCU↔Power Relay Assembly

High Voltage Cable (C133-P) (2 Pin) : HPCU↔Power Relay Assembly

High Voltage Cable (C133-C) (2 Pin) : HPCU↔Electric A/C compressor

High Voltage Cable (C133-C) (2 Pin) : HPCU↔Electric A/C compressor

High Voltage Cable (C133-M) (3 Pin) : HPCU↔Hybrid Drive Motor Assembly

High Voltage Cable (C133-M) (3 Pin) : HPCU↔Hybrid Drive Motor Assembly

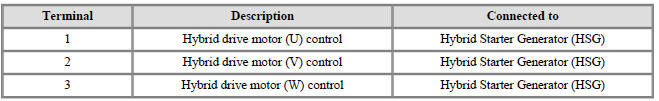

High Voltage Cable (C133-H) (3 Pin) : HPCU↔Hybrid Starter Generator (HSG)

High Voltage Cable (C133-H) (3 Pin) : HPCU↔Hybrid Starter Generator (HSG)

Hybrid Power Control Unit (HPCU)/ Repair procedures

    READ NEXT:

     Hybrid Power Control Unit (HPCU)/ Repair procedures

    Warning Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries. B

     DC Fuse

    Component Location DC Fuse Inverter Connector (↔ Power Relay Assembly (PRA)) Inverter Connector (↔ Electric A/C compressor) Component Location Harness Connector Inverter - Removal Warning Be sure to read and follow the
