KIA Niro: Suspension System
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Suspension System
Service Data
Front Suspension
Rear Suspension

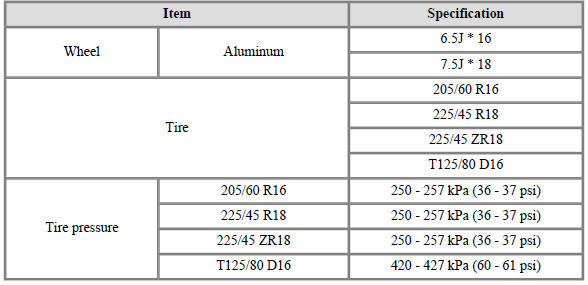

Wheel & Tire

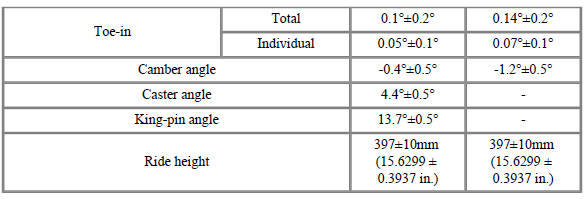

Wheel Alignment
Tightening Torques

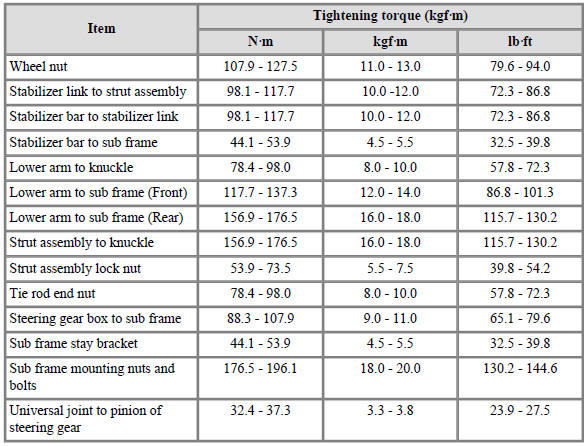

Front Suspension

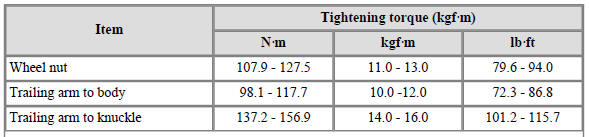

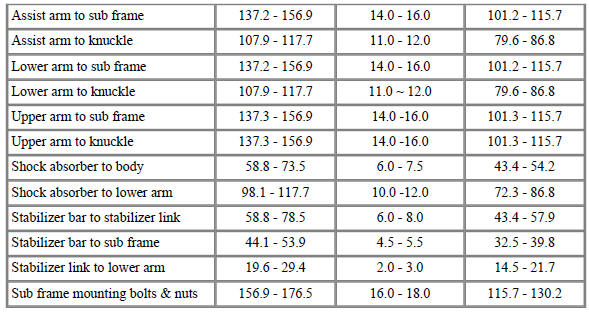

Rear Suspension

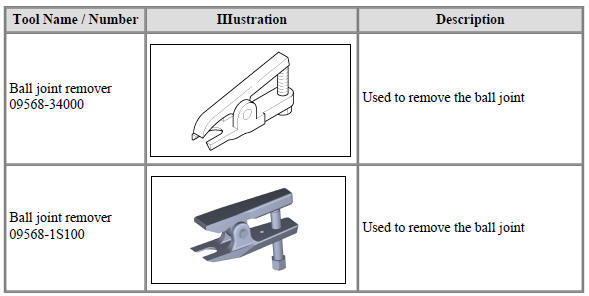

Special Service Tools
Tool Name / Number / IIIustration / Description
Ball joint remover
09568-34000/ /Used
to remove the ball joint
Ball joint remover
09568-1S100/ /Used
to remove the ball joint
- Troubleshooting - Suspension System
- Front Suspension System
- Front Strut Assembly Repair procedures
- Front Lower Arm Repair procedures
- Front Stabilizer Bar
- Sub Frame Repair procedures
- Rear Suspension System
- Rear Shock Absorber Repair procedures
- Rear Lower and Upper Arm Repair procedures
- Rear Stabilizer Bar Repair procedures
- Trailing Arm Repair procedures
- Rear Cross Member Repair procedures
- Tires/Wheels
- Tire Pressure Monitoring System
