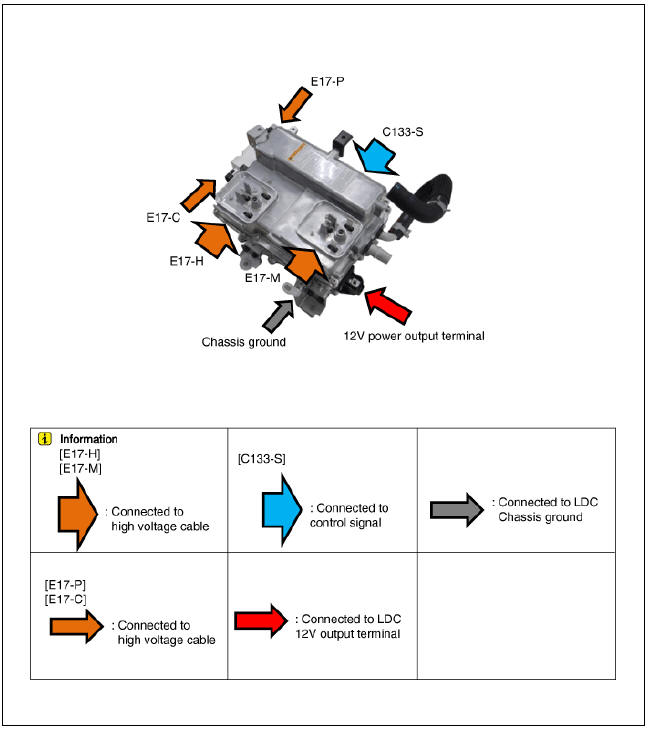

KIA Niro: Hybrid Power Control Unit (HPCU) connector and high voltage cable

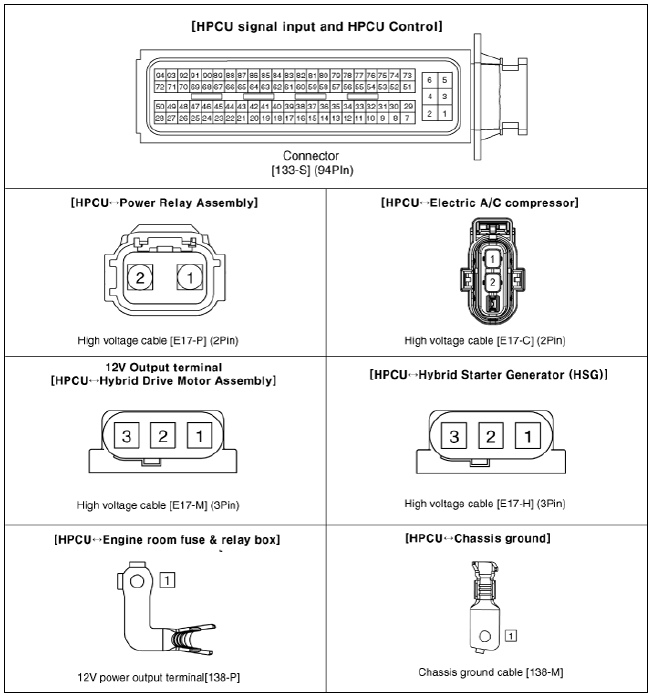

Hybrid Power Control Unit (HPCU) terminal And Input/Output signal

Hybrid Power Control Unit (HPCU) terminal And Input/Output signal

HPCU Terminal Function

HPCU Terminal Function

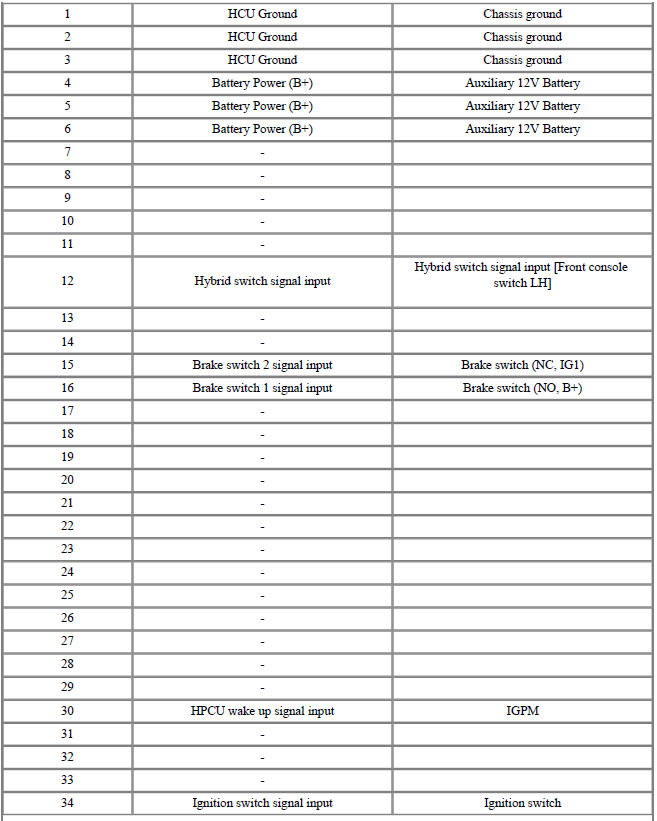

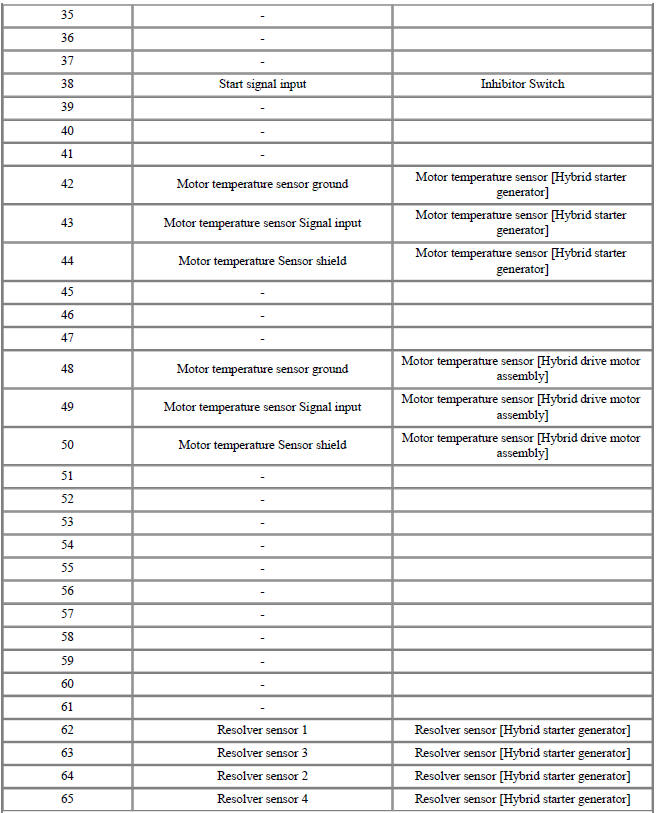

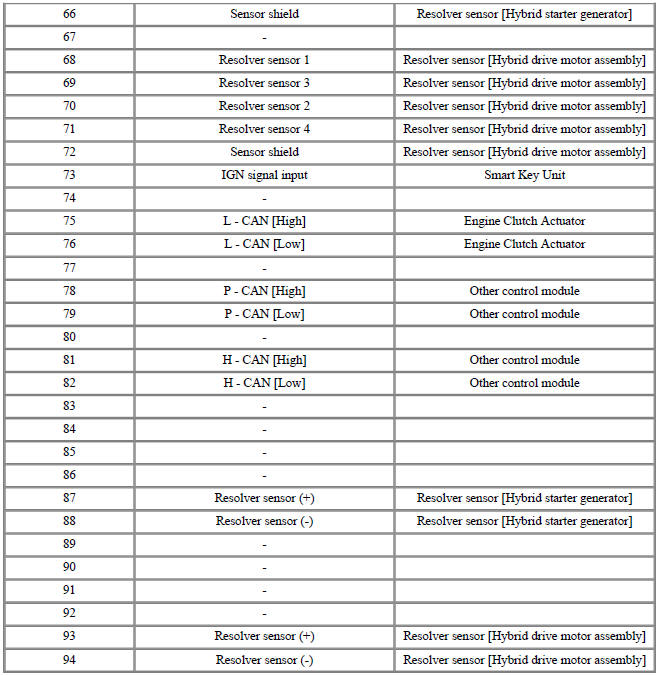

Connector (C133-S) (94Pin) : HPCU signal input and control

High Voltage Cable (C133-P) (2 Pin) : HPCU↔Power Relay Assembly

High Voltage Cable (C133-P) (2 Pin) : HPCU↔Power Relay Assembly

High Voltage Cable (C133-C) (2 Pin) : HPCU↔Electric A/C compressor

High Voltage Cable (C133-C) (2 Pin) : HPCU↔Electric A/C compressor

High Voltage Cable (C133-M) (3 Pin) : HPCU↔Hybrid Drive Motor Assembly

High Voltage Cable (C133-M) (3 Pin) : HPCU↔Hybrid Drive Motor Assembly

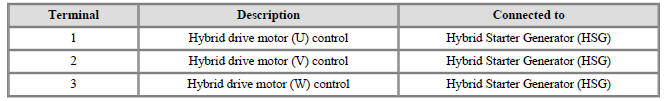

High Voltage Cable (C133-H) (3 Pin) : HPCU↔Hybrid Starter Generator (HSG)

High Voltage Cable (C133-H) (3 Pin) : HPCU↔Hybrid Starter Generator (HSG)
