KIA Niro: Portable charge

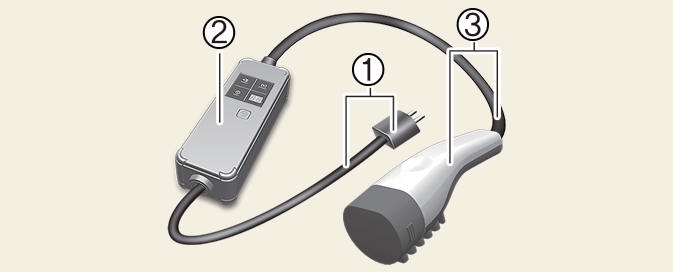

- Code and Plug (Code set)
- Control Box
- Charging Cable and Charging Connector
Portable Charge can be used when AC Charge or DC Charge is not available by using household electricity.
Setting the charge level of the portable charger

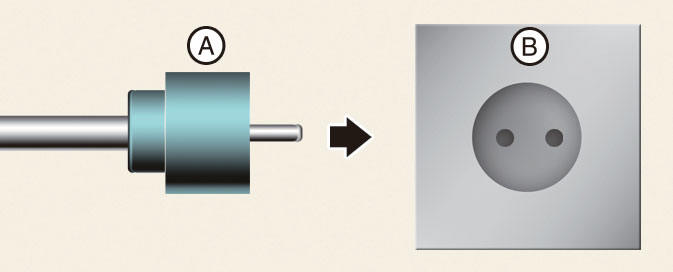

- A: Plug
- B: Electric Outlet
- Check the rated current of the electric outlet prior to connecting the plug to the outlet.
- Connect the plug to a household electric outlet.
- Check the display window on the control box.

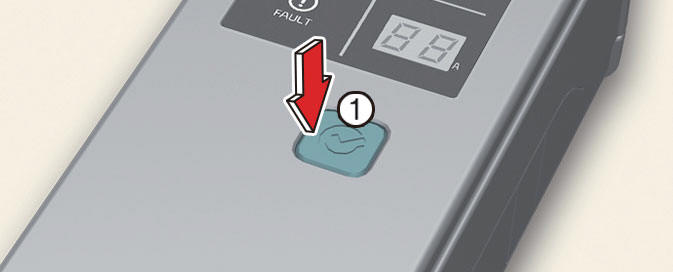

- Press the button (1) on the back of the control box for 2 to 8 seconds to adjust the charge level. (Refer to charging cable type and example for setting the charge level.)
- The charge level on the display window of the control box changes every time you press the button (1).
- When setting the charge level is complete, start charging according to the portable charge procedure.

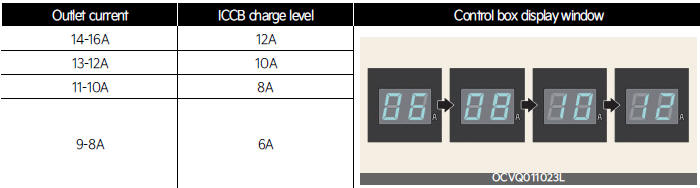

* Example for setting the ICCB charge level
* The example is only for reference and may vary according to the surrounding environment.
CAUTION
Please make sure that charge level selection matches the capacity of your circuit breaker to avoid blown fuse.
READ NEXT:
How to connect portable charger (ICCB: In-Cable Control Box)
Connect the plug to a household electric
outlet.
A: Plug
B: Electric Outlet
Check if the power lamp (green)
appears on the control box.
Depress the brake pedal and apply
the parking brake.
Turn OFF all switches,
Charging status indicator lamp for portable charger
Status/Diagnosis/Countermeasure
Charging connector plugged into
vehicle (POWER Green ON)
Plug connected to an electric outlet
(POWER Green ON)
While charging
Charge indicator (POWER Green ON/
CHARGE Blue ON)
Charg
Charging the electric vehicle (Abrupt stop)
Action to be taken when charging
stops abruptly
When the high voltage battery does not
charge, check the followings:
Check the charging setting for the
vehicle. Refer to "EV settings" (e.g. When scheduled charging is
set, c
