KIA Niro: Radiator Grille

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Body (Interior And Exterior) / Front Bumper / Radiator Grille

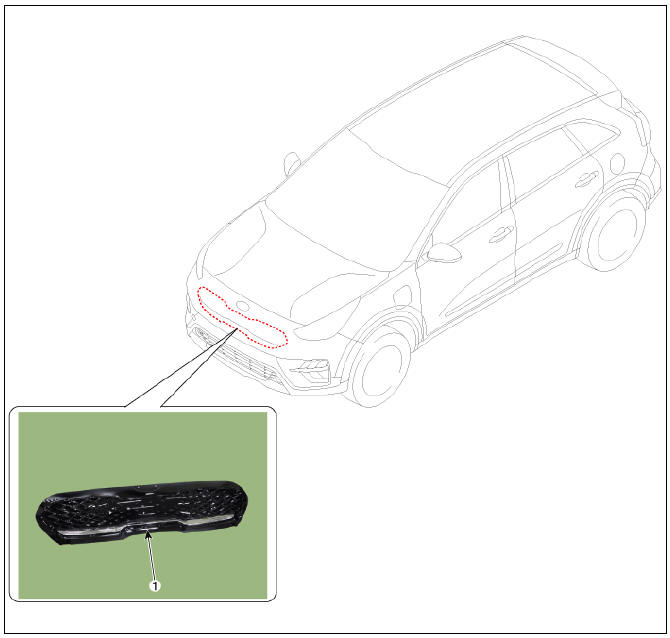

  1. Radiator Grille

Replacement

  1. Remove the front bumper assembly.

    (Refer to Front Bumper - "Front Bumper Assembly")

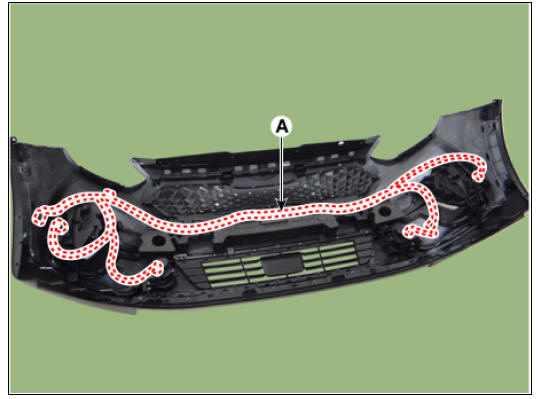

  2. Remove the front bumper wiring (A).

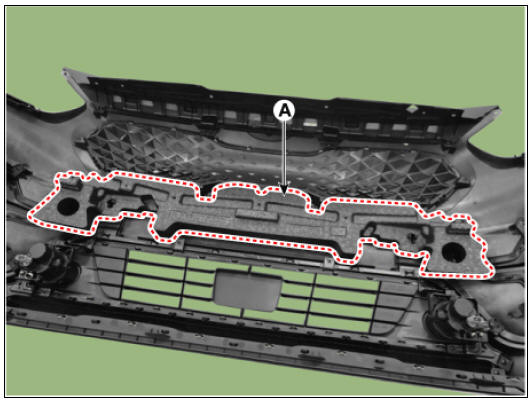

  1. Remove the front bumper energy absorber (A).

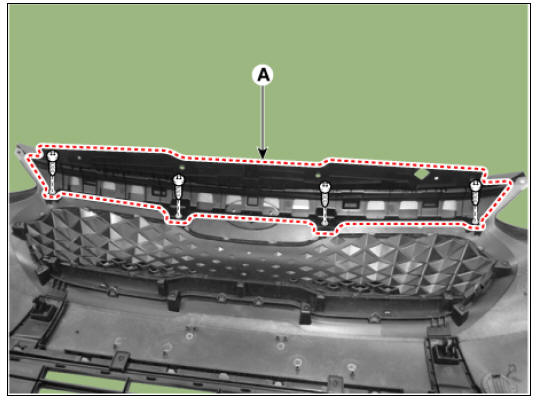

  1. After loosening the mounting screws, remove the radiator grille upper cover (A).

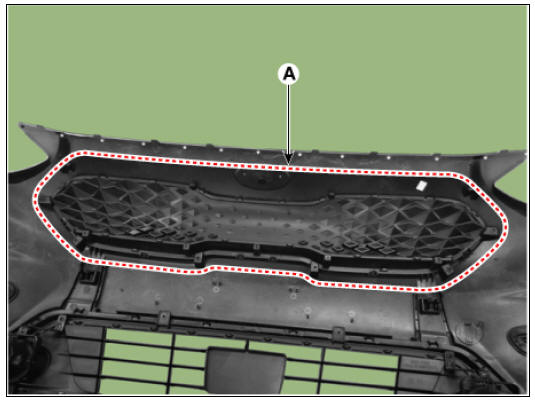

  1. After loosening the mounting screws, remove the radiator grill (A).

  1. To install, reverse the removal procedure.

Warning

Replace any damaged clips (or pin-type retainers).
