KIA Niro: Rear / Front Inlet Cooling Duct

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Hybrid Control System / High Voltage Battery Cooling System / Rear / Front Inlet Cooling Duct

Removal

Warning

  • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
  • Be sure to read and follow the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.

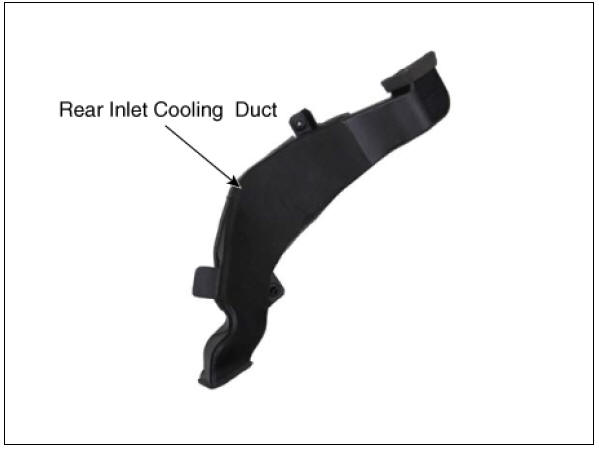

Rear Inlet Cooling Duct

  1. Switch "OFF" the ignition and disconnect the negative (-) terminal of the auxiliary 12V battery.
  2. Shut off the high voltage circuit.



    (Refer to Hybrid Control System - "High Voltage Shutoff Procedure")

  3. Remove the rear seat cushion.



    (Refer to Body - "Rear Seat Assembly")

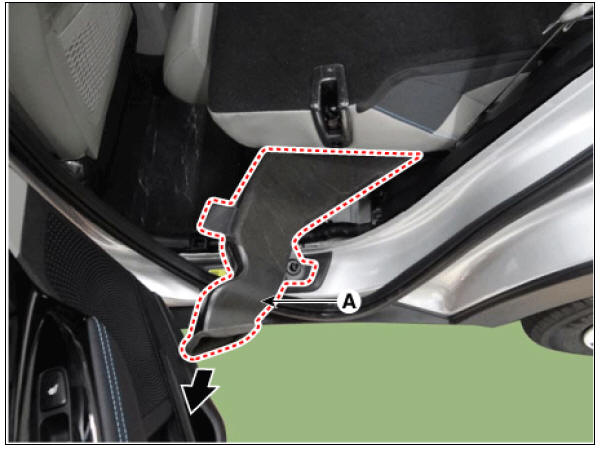

  4. Remove the rear door scuff trim (A).

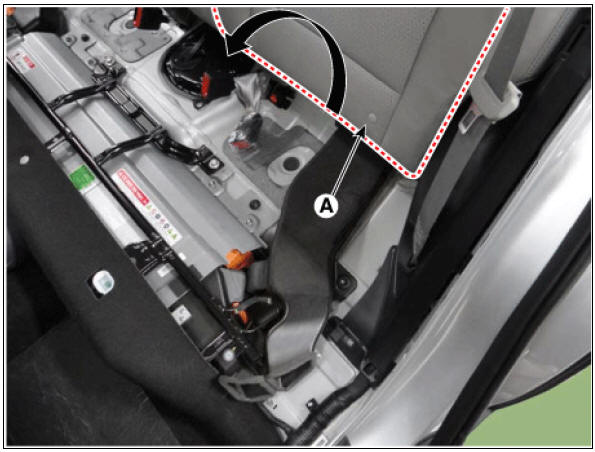

  1. Open the rear seat back (A) in the direction of an arrow.

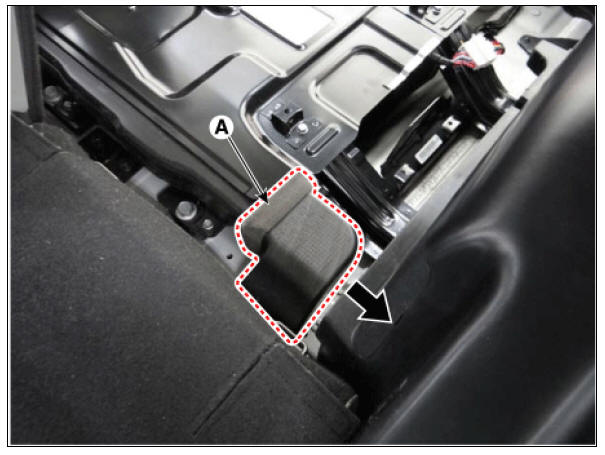

  1. Unfasten the inlet duct (A) in the direction of arrow.

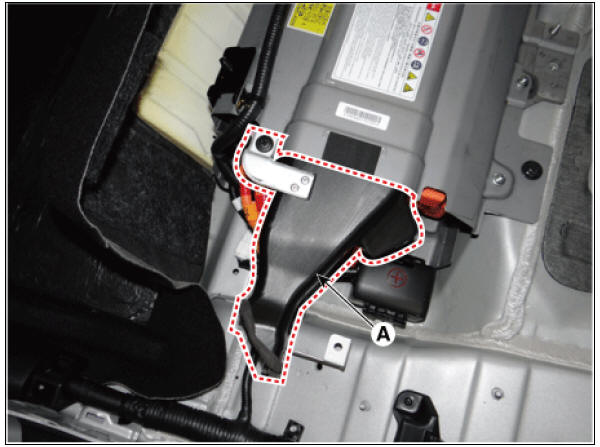

  1. Remove the inlet duct (A) in the direction of arrow.

Front Inlet Cooling Duct

Front Inlet Cooling Duct

  1. Switch "OFF" the ignition and disconnect the negative (-) terminal of the auxiliary 12V battery.
  2. Shut off the high voltage circuit.



    (Refer to Hybrid Control System - "High Voltage Shutoff Procedure")

  3. Remove the rear seat cushion.



    (Refer to Body - "Rear Seat Assembly")

  4. Remove the rear door scuff trim (A).

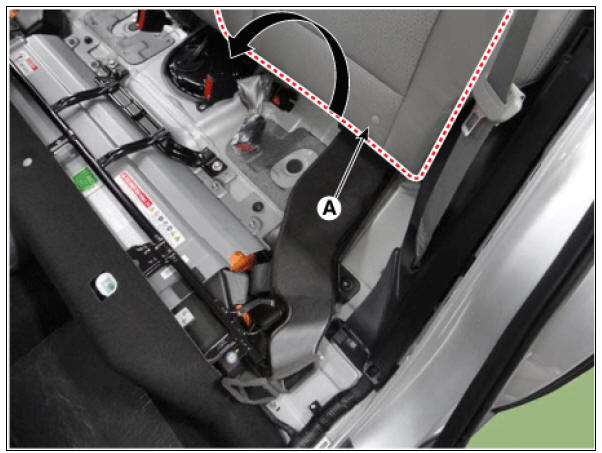

  1. Open the rear seat back (A) in the direction of an arrow.

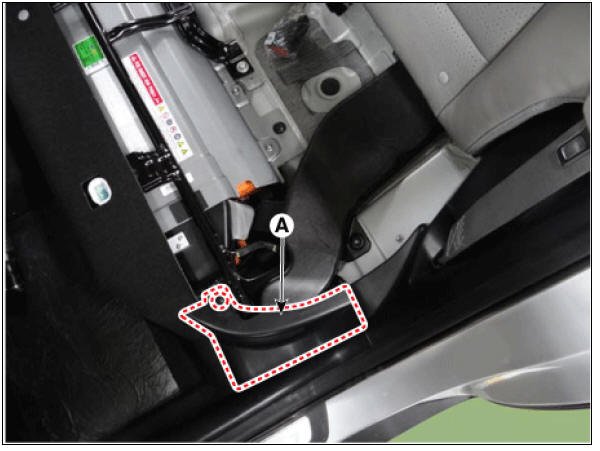

  1. Unfasten the inlet duct (A) in the direction of arrow.

  1. Remove the inlet duct (A) in the direction of arrow.

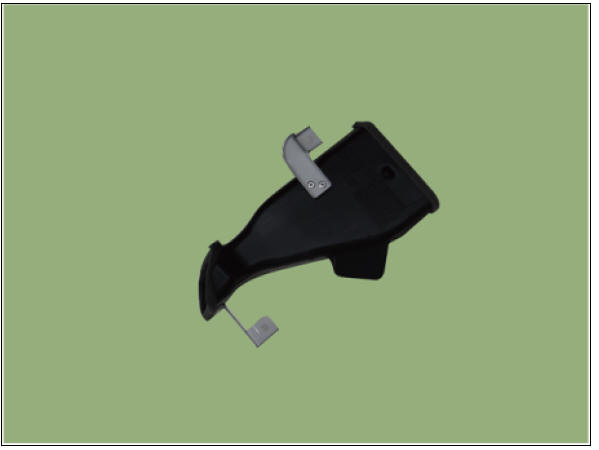

  1. Remove the front inlet duct (A) from a vehicle.

Front / Rear Outlet Cooling Duct
