KIA Niro: Lighting System
Lighting System / Components And Components Location

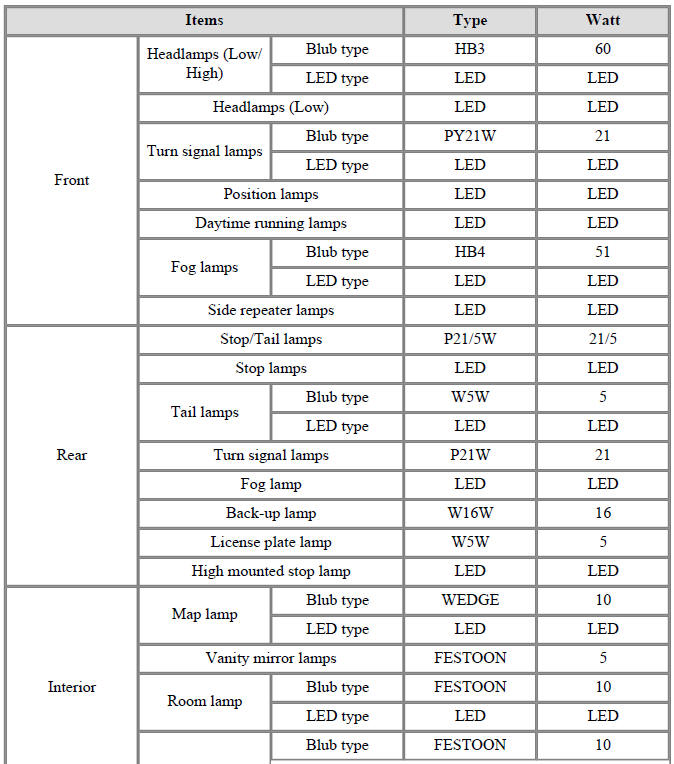

Specifications

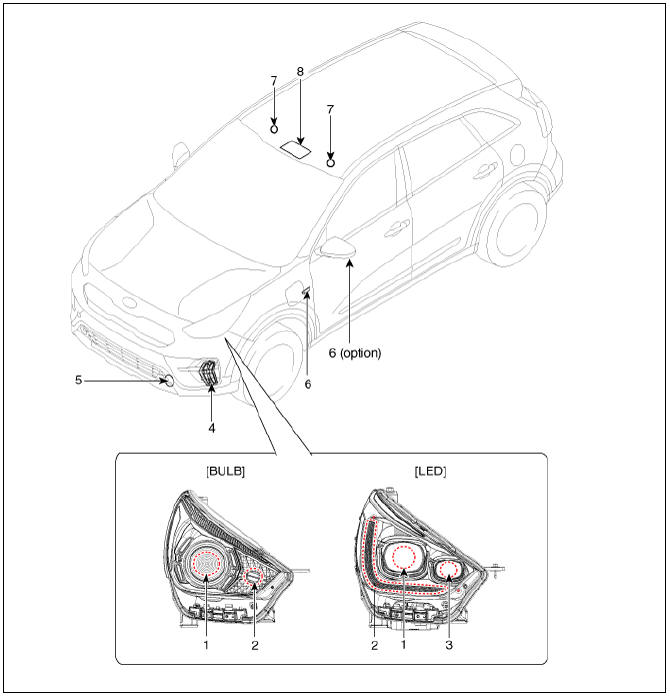

Lighting System / Components And Components Location
- Headlamp (Low/High BI-Function)
- Turn signal lamp
- Sub low beam
- Daytime running light, Position lamp
- Fog lamp
- Side repeater lamp
- Vanity lamp
- Map lamp

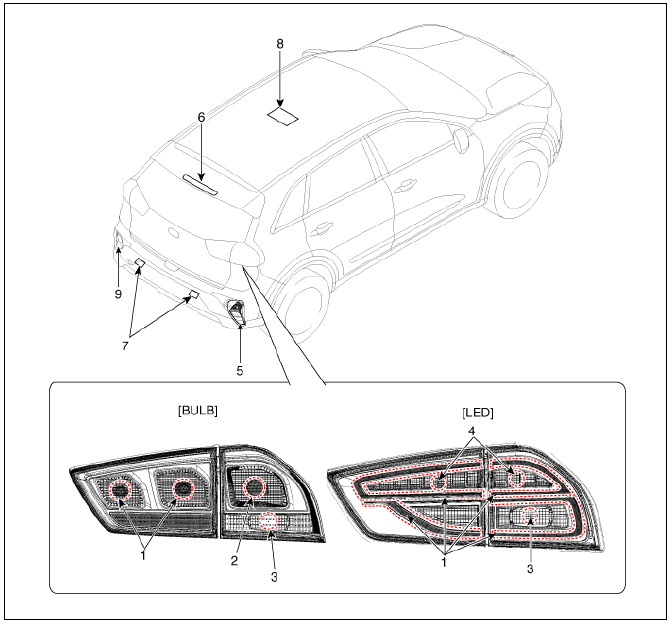

- Tail lamp
- Tail lamp, Stop lamp
- Turn signal lamp
- Stop lamp
- Back-up lamp
- High mounted stop lamp
- License lamp
- Room lamp
- Rear fog lamp
- Headlamps Description and operation | Lighting System / Headlamps Repair Procedures
- Room Lamp Repair procedures | Vanity Lamp Repair procedures
- Overhead Console Lamp Repair procedures | Hazard Lamp Switch
- Rheostat | Front Fog Lamps Repair procedures
- License Lamps Repair procedures | High Mounted Stop Lamp Repair procedures
- Rear Combination Lamp Repair procedures | Tail Lamp
READ NEXT:
Headlamps Description and operation | Lighting System / Headlamps Repair Procedures
Description
BI-FUNCTION
Definition
A headlamp with integrated functions of high and low beam
The light is controlled by rotating the shield inserted to the lens. (A solenoid is adopted.)
Structure and mechanism
Room Lamp Repair procedures | Vanity Lamp Repair procedures
Removal
Warning
Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Disconnect the negative (-) battery terminal
SEE MORE:
Relay Box (Passenger Compartment) Repair procedures
Fuse Inspection
Check that the fuse holders are loosely held and that the fuses are
securely fixed by the holders.
Check that each fuse circuit has the exact fuse capacity.
Check the fuses for any damage.
Warning
If a fuse is to be rep
DC Fuse
Component Location
DC Fuse
Inverter Connector (↔ Power Relay Assembly (PRA))
Inverter Connector (↔ Electric A/C compressor)
Component Location
Harness Connector
DC Fuse Repair procedures
Removal
Warning
Be sure to rea
